BELL 412M
Weapons and mission equipment packages on the U.S. Munitions List are subject to the Arms Export Control Act and require approval for export from the U.S. Department of State. The 505M base configuration is available for acquisition through the IDIQ contract with the U.S. Army. Some options and configurations pictured may only be available to non-U.S. customers through the U.S. Government’s Foreign Military Sales (FMS) process. All FMS cases for these aircraft are managed by the U.S. Army Multi-National Aviation Special Project Office (MASPO) In Huntsville, Alabama.
A time-tested, rugged and reliable solution

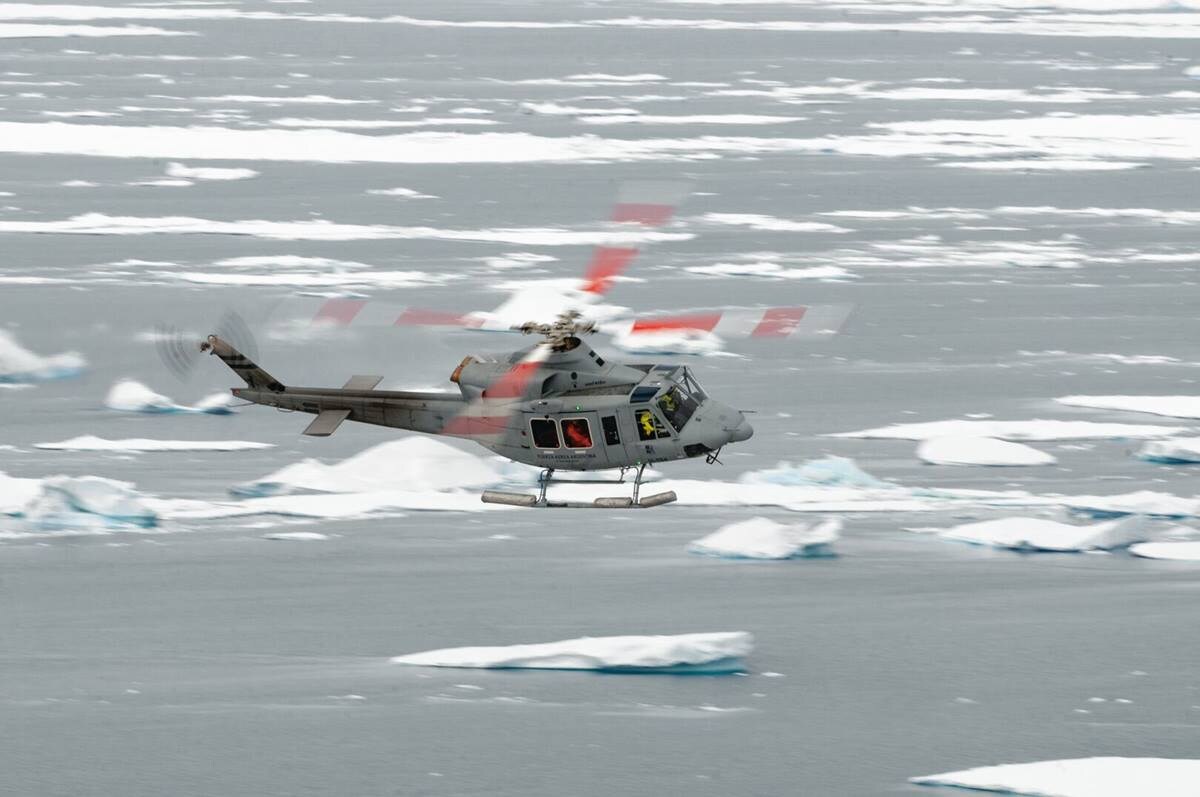

With more than 50 years of platform experience, the Bell 412M combines features from the world-renowned Huey with advanced systems and avionics to offer a rugged, reliable workhorse. The aircraft leverages its large cabin and proven capabilities to operate para-public and para-military missions in over 55 countries.
Missions
Air Assault / Air Mobility
With troop capacity and power to lift a pilot and up to 14 combat-laden personnel coupled with crew-served weapon options, the Bell 412M is a versatile solution for air assault operations, tactical air mobility and Aerial Reaction Force (ARF).
Special Operations
The twin engine Bell 412M reliability, power and unrestrictive, maintenance-free skid landing gear support non-conventional missions to confined, permissive and non-permissive landing areas that include waterborne HELOCAST and parachute operations, skid and/or plank insertion/extraction, SPIES and FRIES.
Combat Search & Rescue
Equipped with an optional hoist, the Bell 412M performs aerial extractions at land or sea. With multiple configurable options to support passengers as well as ambulatory and litter patients the 412M is versatile and tailorable to the mission. The Bell 412M is the culmination of over 50 years of combat search and rescue or personnel recovery.
Anti-Submarine / Anti-Surface Warfare
ASW/ASuW
Building on the legacy of armed maritime experience from the UH-1, the Bell 412M is a cost-effective, anti-submarine warfare platform. When equipped with the optional dipping sonar and aerial torpedo delivery system the 412M can locate, track, damage or destroy enemy submarines and surface vessels.
Humanitarian Assistance / Disaster Relief
Facilitates the rapid and mass distribution of food and medicine to non-trafficable remote locations or devastated areas, the Bell 412M's large internal cargo area is rated at to 12,200 lbs / 5,534 kg with an external load lift capacity of up to 5,000 lbs / 2,268 kg and a usable service ceiling of 15,720 ft / 4,791 m.
Missions
-
Air Assault / Air Mobility
-
Special Operations
-
Combat Search & Rescue
-
Anti-Submarine / Anti-Surface Warfare
ASW/ASuW -
Humanitarian Assistance / Disaster Relief
With troop capacity and power to lift a pilot and up to 14 combat-laden personnel coupled with crew-served weapon options, the Bell 412M is a versatile solution for air assault operations, tactical air mobility and Aerial Reaction Force (ARF).
The twin engine Bell 412M reliability, power and unrestrictive, maintenance-free skid landing gear support non-conventional missions to confined, permissive and non-permissive landing areas that include waterborne HELOCAST and parachute operations, skid and/or plank insertion/extraction, SPIES and FRIES.
Equipped with an optional hoist, the Bell 412M performs aerial extractions at land or sea. With multiple configurable options to support passengers as well as ambulatory and litter patients the 412M is versatile and tailorable to the mission. The Bell 412M is the culmination of over 50 years of combat search and rescue or personnel recovery.
Building on the legacy of armed maritime experience from the UH-1, the Bell 412M is a cost-effective, anti-submarine warfare platform. When equipped with the optional dipping sonar and aerial torpedo delivery system the 412M can locate, track, damage or destroy enemy submarines and surface vessels.
Facilitates the rapid and mass distribution of food and medicine to non-trafficable remote locations or devastated areas, the Bell 412M's large internal cargo area is rated at to 12,200 lbs / 5,534 kg with an external load lift capacity of up to 5,000 lbs / 2,268 kg and a usable service ceiling of 15,720 ft / 4,791 m.
Features
TekFusion Global PATHFINDER™ Mission Management System
A customizable tool created from tactical and special operations experience, the Mission Management System (MMS) enables easy user navigation and seamless command and control of mission execution. The intuitive interface and advanced system enhance operational efficiency while reducing pilot workload. Target locations and ranges can be passed from PATHFINDER™ to an optional digital WMS. Launch Acceptable Regions (LAR) or Weapons Engagement Zones (WEZ) can be displayed on the PATHFINDER™ moving map.
Advanced EO/IR Sensor
Complete with both visible and infrared sensors, the EO/IR enables long-range, accurate identification of targets to pinpoint threats at a distance and degraded weather, day or night. The EO/IR can be integrated into and displayed directly onto the cockpit Multi-Function Displays (MFD) when equipped with the Bell Basix Pro avionics system.
CFD International Huey Ordnance Stores System
The CFD International design is a flexible, precision-engineered weapon stores system for combat aircraft. It is a low maintenance design with quick disconnect features to enable easy installation and removal of various mission kits such as munitions and external auxiliary fuel tanks. The modularity of the Huey Ordnance Stores System (HOSS) - integrates high-capacity ammunition magazines with two to four weapons stations plus a pintle mount simultaneously. The HOSS enables the versatility to deploy 2.75 inch rockets, precision-guided missiles, light torpedoes and to fixed forward 7.62 and/or .50 caliber crew-served and mini-guns guns.
TekFusion Global Weapons Management System
A scalable weapons management system that ranges from entry level gun and rocket systems to a fully integrated digital cockpit. Optimized for the Bell 412M, the TekFusion Global Weapons Management System (TFG WMS) reduces pilot workload for weapons targeting and deployment. The system includes built-in safety features to ensure the weapons system is not accidentally or prematurely deployed and ensures seamless coordination between the WMS and the PATHFINDER™ Mission Management System.
Survivability Features
From armored pilot seats and ballistic-tolerant main rotor blades to a self-sealing fuel system and infrared suppression system, Bell 412M utilizes durable, modern components to operate in any tactical environment. It can be equipped with detection of surface-to-air missiles and manual/automatic protection through chafe flare to ensure you safely return from the mission.
Additional Armament
The Bell 412M can accommodate a wide range of armament, ranging from crew served or fixed forward 7.62 mm and/or 12.7mm (.50 caliber) machine guns to precision-guided 2.75 inch rockets, torpedoes and precision-guided missiles.
Specifications
Performance
*Std Max GW, ISA, std fuel, no reserve at sea level
Capacities
Powerplant
* Uninstalled Thermodynamic Capability
Avionics
Bell BasiX Pro™ Integrated Avionic System
- Garmin GTN-750 NAV/COM/WAAS GPS
- Helicopter Terrain Avoidance Warning System (H-TAWS) Capability
- Power Situation Indicator (single indicator for quick pilot monitoring)
- Automatic Dependent Surveillance-Broadcast (NextGen, Standard ADS-B out, Optional ADS-B in)
- LED cockpit lighting and panels
