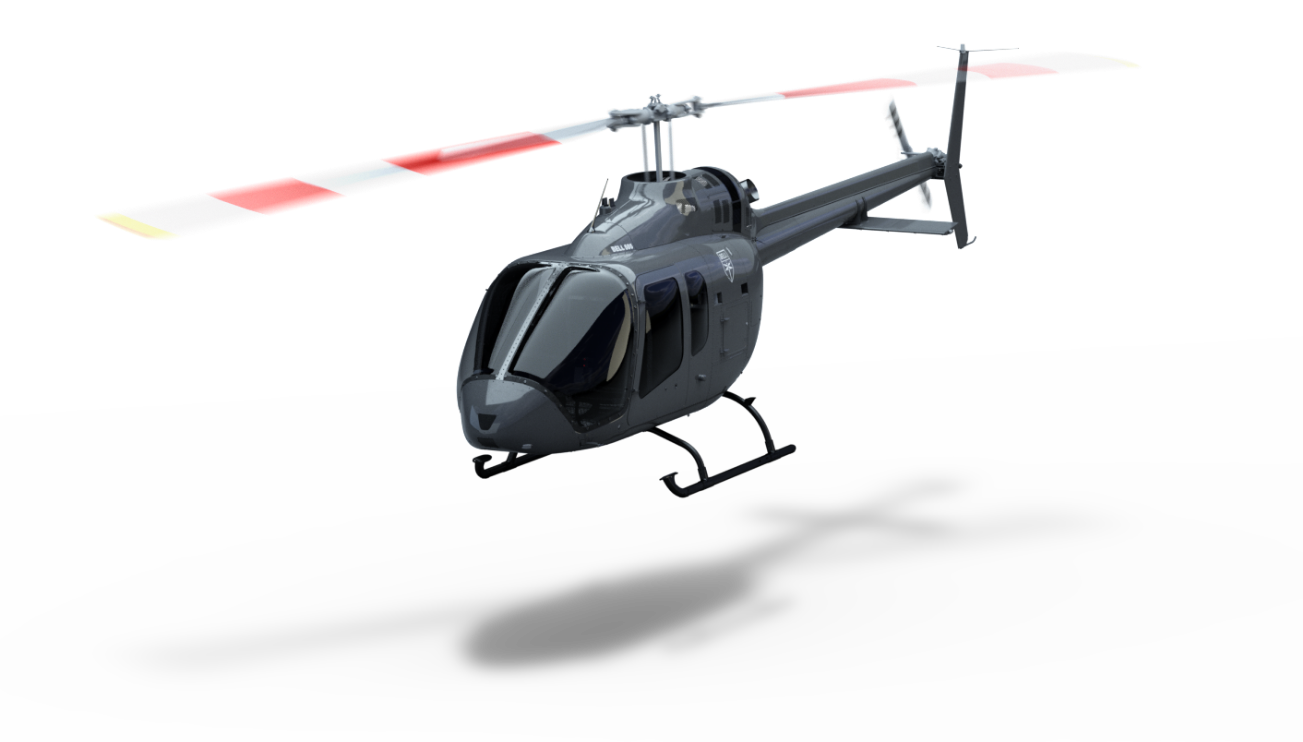

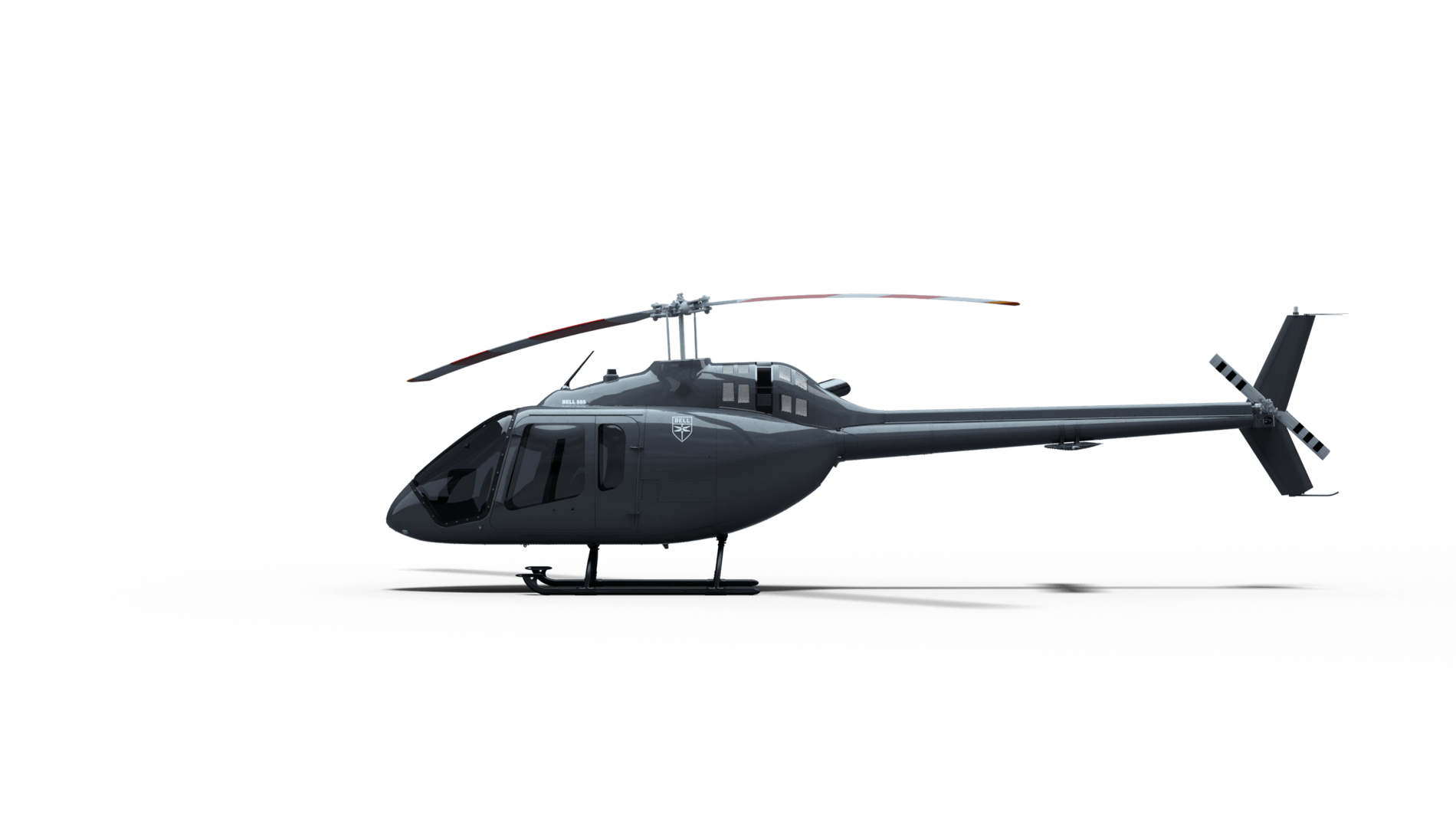

BELL 505



Capable and flexible

The sky’s the limit with the Bell 505. A high-tech flight deck and adaptable cabin design make it an extremely cost-competitive, and capable for any challenge.



Explore the Series

505
CLICK AND DRAG AIRCRAFT

1+4

Capacity

125

Speed

306

Range

Long Distance. Thrilling Ride.

Get to your destination, but enjoy the trip. Reach further locations with our wide aircraft range, designed to get you where you need to go.

Bell 505
306
COMPARE A PRODUCT
Select
View Range Disclaimer
MGW, Sea level, ISA, No reserves

Hover Performance

14,450

In Ground Effect

10,460

Out of Ground Effect
Rocky Mountain Rotors Bell 505

Bell 505

The sky’s the limit with the Bell 505. A high-tech flight deck and adaptable cabin design make it an extremely cost-competitive, and capable for any challenge.

1+7
Capacity
306
Speed
125
Range
Web_Hero-Montenegro Bell 505

Bell 505 M

Bell's expertise in training goes beyond designing the right aircraft for your mission. Having trained over 130,000 pilots from private/commercial operators to government agencies and worldwide armed forces, Bell knows the highly demanding requirements of trainer aircraft. Designed with pilot input, the 505M is the perfect training partner. With Dual-Channel FADEC and an open cabin design, trainers and trainees get an exceptional experience with the critical safety features they need.

1+7
Capacity
306
Speed
125
Range
Rocky Mountain Rotors Bell 505

Bell 505

The sky’s the limit with the Bell 505. A high-tech flight deck and adaptable cabin design make it an extremely cost-competitive, and capable for any challenge.

1+7
Capacity
306
Speed
125
Range
Web_Hero-Montenegro Bell 505

Bell 505 M

Bell's expertise in training goes beyond designing the right aircraft for your mission. Having trained over 130,000 pilots from private/commercial operators to government agencies and worldwide armed forces, Bell knows the highly demanding requirements of trainer aircraft. Designed with pilot input, the 505M is the perfect training partner. With Dual-Channel FADEC and an open cabin design, trainers and trainees get an exceptional experience with the critical safety features they need.

1+7
Capacity
306
Speed
125
Range
Please rotate your device to landscape

Missions

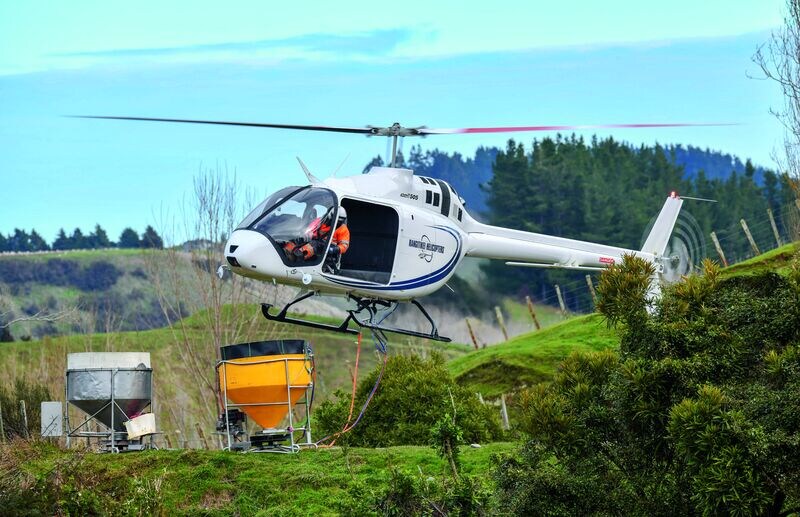

Utility
Admired Versatility

Learn more

Whether moving people or cargo, the 505 is the newest force in the market. An open cabin with integrated tie downs, movable seats and ability to adapt to a variety of jobs keep this aircraft in high demand.

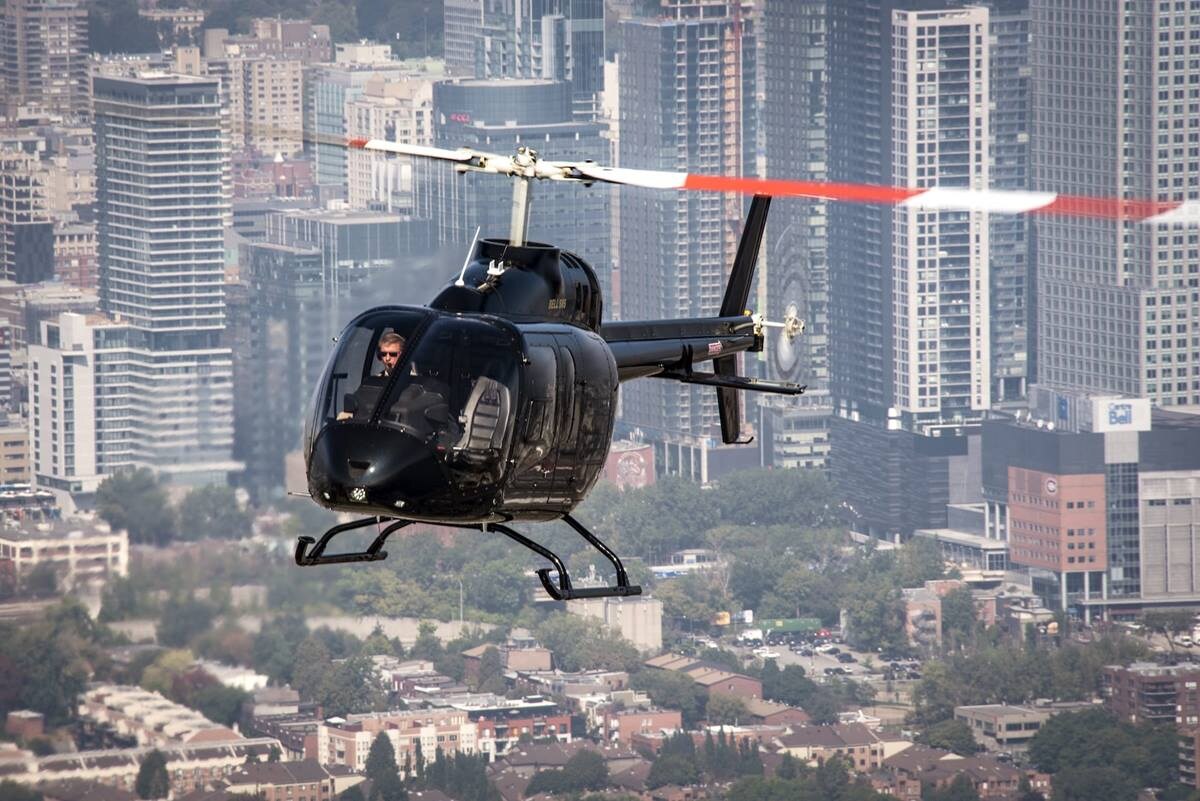

Corporate
True Business-class Comfort

Learn more

Exceed your expectations with a large, customizable cabin and fully integrated high-tech features. It's got the style you need—with the speed to match.

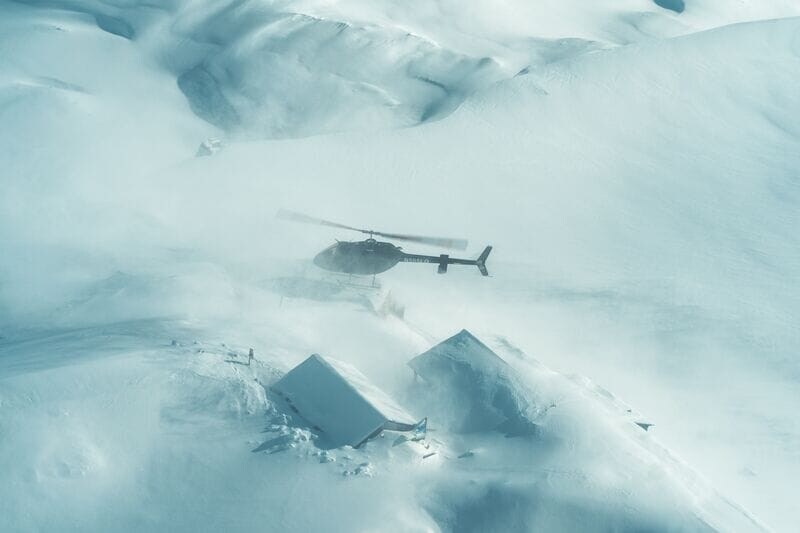

Adventure
Travel To New Heights

Learn more

Skip the airport and head straight for adventure. The Bell 505 Jet Ranger X is ready to take you not just where you need to go, but where you want to go.
Training
A Trusted Platform

Join generations of first-time pilots who learned to fly with confidence. With a glass cockpit and new avionics, this new aircraft combines an upgraded platform with the familiar feel of a Bell 206 to give you the thrill of flight.

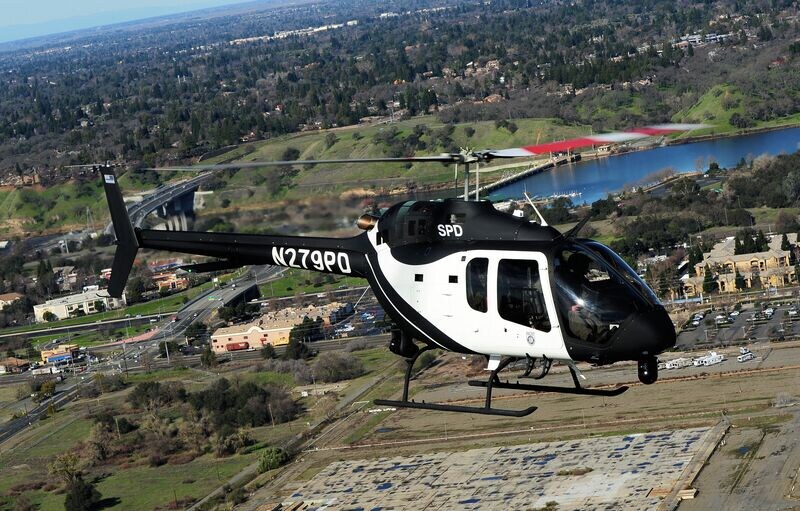

Public Safety

Easily Customizable

Learn More

Fit the equipment you need with a generous layout, flat floor and removable seats. Make mission preparedness easier with seamless cabin customization.

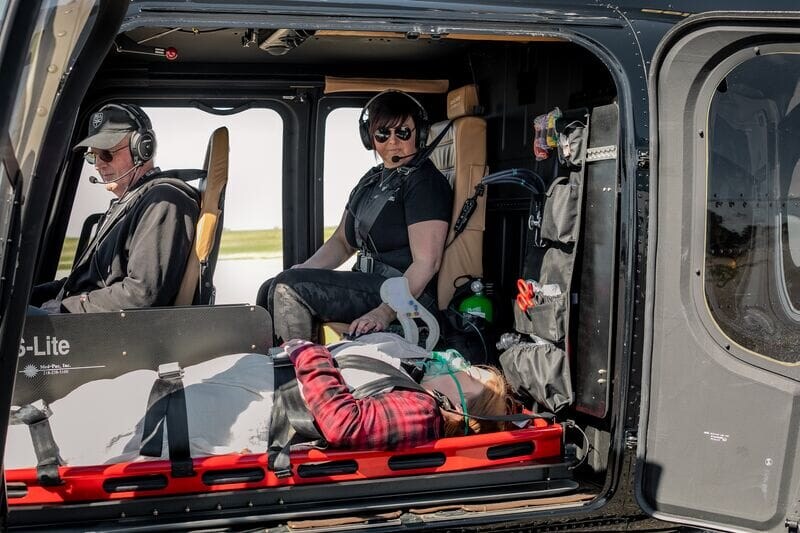

HEMS
Safe and Affordable
Get heightened situational and terrain awareness for your flight crew with the 505's glass cockpit and large windows, all at a competitive rate.

Whether moving people or cargo, the 505 is the newest force in the market. An open cabin with integrated tie downs, movable seats and ability to adapt to a variety of jobs keep this aircraft in high demand.

Exceed your expectations with a large, customizable cabin and fully integrated high-tech features. It's got the style you need—with the speed to match.
Skip the airport and head straight for adventure. The Bell 505 Jet Ranger X is ready to take you not just where you need to go, but where you want to go.

Join generations of first-time pilots who learned to fly with confidence. With a glass cockpit and new avionics, this new aircraft combines an upgraded platform with the familiar feel of a Bell 206 to give you the thrill of flight.

Fit the equipment you need with a generous layout, flat floor and removable seats. Make mission preparedness easier with seamless cabin customization.
Get heightened situational and terrain awareness for your flight crew with the 505's glass cockpit and large windows, all at a competitive rate.

It would've been a huge mistake for the growth of our company had we bought a different aircraft.



See all testimonials

Mark Taylor

Co-Owner and Chief Pilot of Rocky Mountain Rotors discussing the Bell 505

Mark Taylor

Co-Owner and Chief Pilot of Rocky Mountain Rotors discussing the Bell 505

Web_Hero-505_StartStick_Urschel_SDSL5151_2017_flat
Web_Hero-505_St-Jean_82517-7226
Web_Hero-Bell_505_82517-6663_flat
Web_Hero-Bell_505_82517-7295_flat
Web_Hero-CML_505_Rangitikei-Helicopters_JRX 0039_2018
Web_Hero-CML_505_Rangitikei-Helicopters_JRX 1636_2018
01/06 Photos

Features

505 MISSION Cargo 2014-2

Mission-Specific Design

Get an interior that matches your mission—even if it changes. Our fully flat floor, complete with tie-downs, offers the flexibility you need for whatever your mission requires.
35

Flexible Cabin Space

Need more space? No problem. With more rear-cabin room than any aircraft in its class and removable seats, the Bell 505 adapts to you, not the other way around.
Bell 505 VIP Interior

Make your Bell 505 magnificent

Step up to the Mecaer Aviation Group's Magnificent interior. Upgrades include modified pilot and passenger seats, carpet, new interior panels, headliner with PSU (Passenger Service Unit), USB Charging ports and additional storage.
Web_Standard-CML_505_Photo_Reignwood-LH_0216_3800x2200px_080118-R01

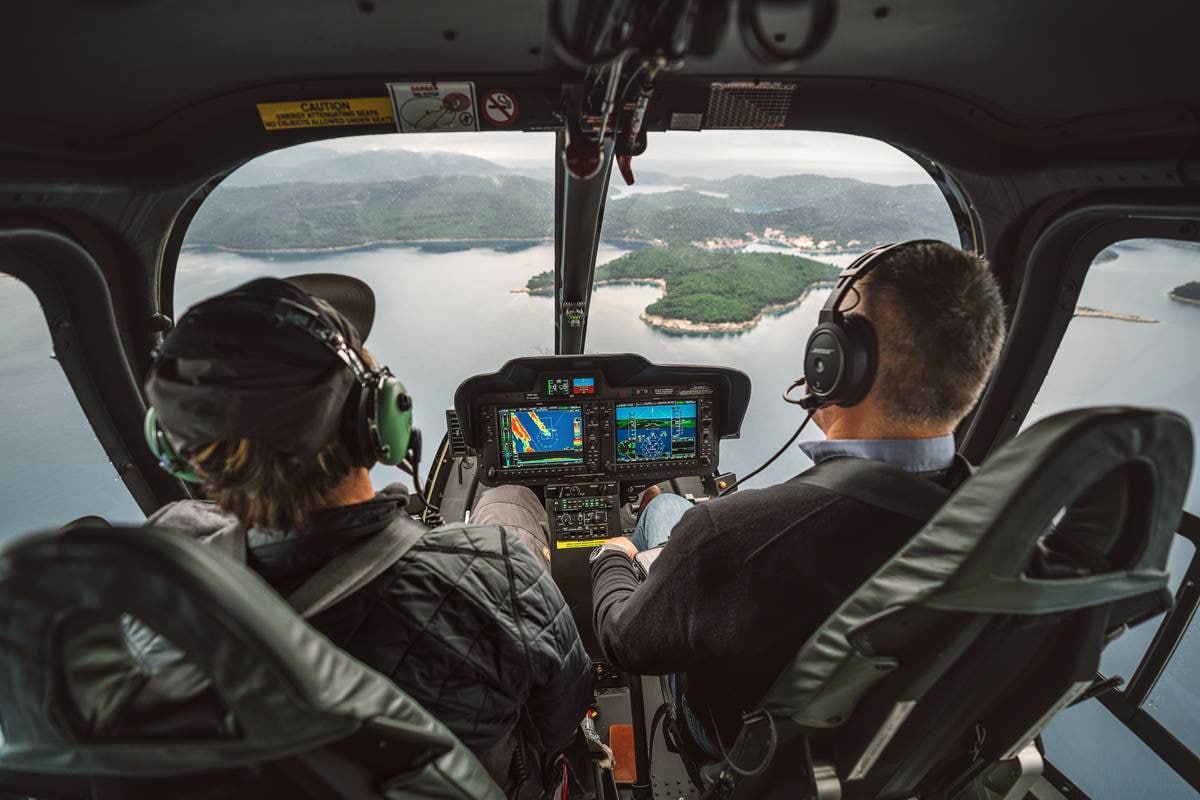

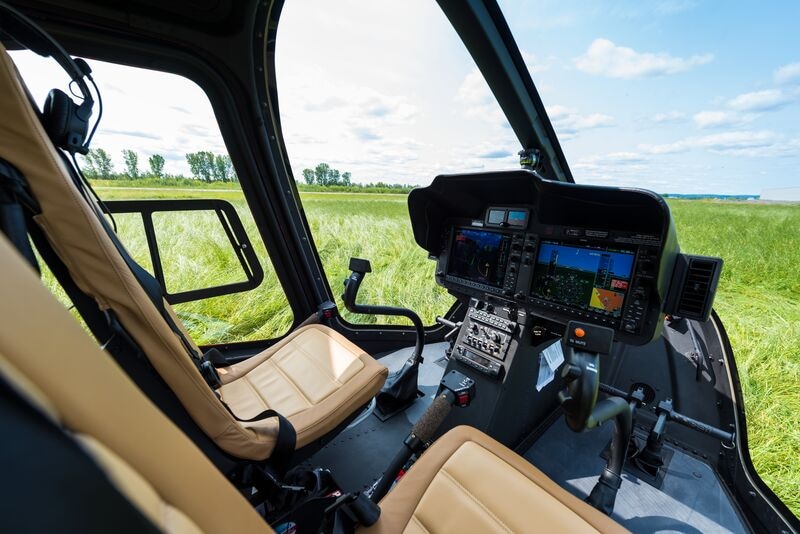

All Glass Avionics

See all your avionics in one place. The Garmin G1000 shows critical flight data, and a moving map display. So you can make decisions at the speed of flight.
3

Efficient Engine Power

The only dual-channel engine in its class. For more power at altitude, better hot and high performance and superior fuel efficiency—every time you fly.
11

Metal Rotors

Our two-bladed rotor system with a higher inertia adds an excellent auto-rotational capability. It gives you a powerful lift without any excess drag.
44

Load with Ease

The double doors on the Bell 505 let you load and unload equipment with ease. Why waste a second when every minute counts?

Specifications

Bell 505
Select a Document
  • Select a Document
  • Bell 505 Fact Sheet
  • Bell 505 Experience
  • Bell 505 IERW Trainer Fact Sheet
  • Bell 505 VIP Brochure

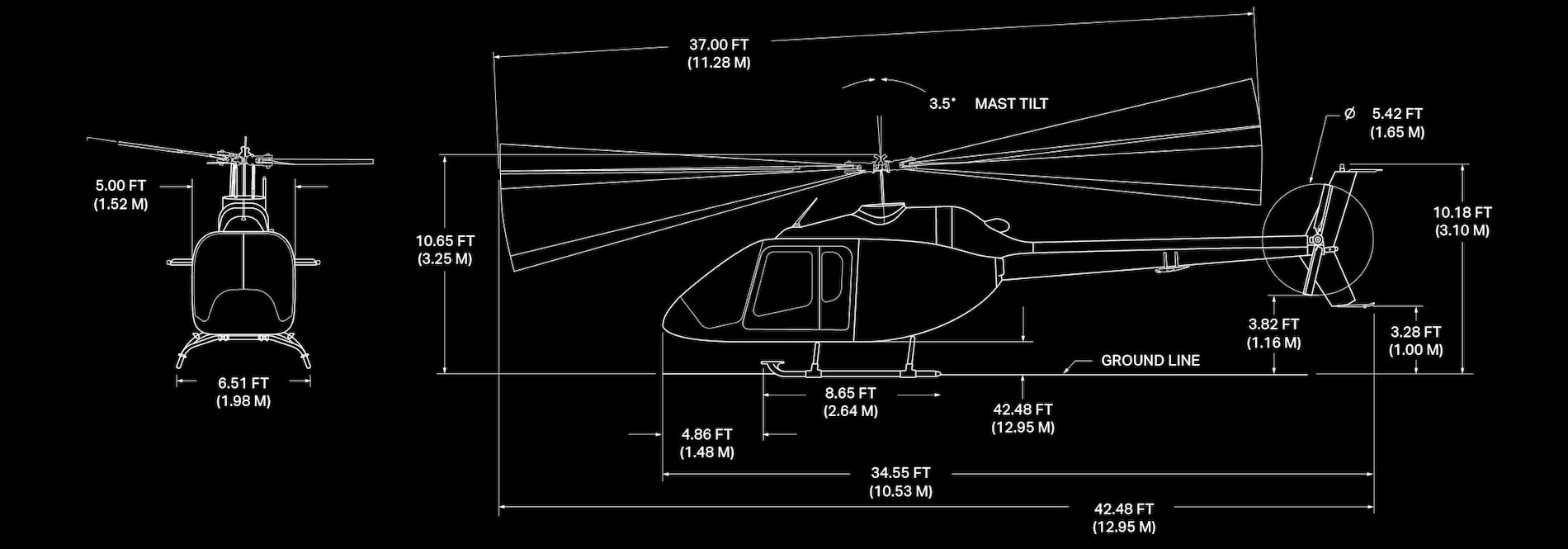

Bell 505 Specification Image
Performance
  • Hover Ceiling IGE
    14,450 ft / 4,404 m
  • Hover Ceiling OGE
    10,460 ft / 3,188 m
  • Max Cruise
    125 kts | 231 km/h
  • Service Ceiling (Pressure Altitude)
    18,610 ft PA / 5,672 m PA
  • Range at VLRC*
    306 nm | 566 km
  • Max Endurance (No reserves, 60 KIAS)
    > 3.9+ hrs
*MGW, Sea Level, ISA, no reserve
Capacity
  • Baggage Compartment Volume
    18 ft3 / 0.5 m3
  • Cabin Floor Area**
    22 ft2 / 2.0 m2
  • Empty Weight - (base aircraft)
    2,180 lbs / 989 kg
  • External Useful Load
    2,295 lbs / 1,041 kg
  • Internal Useful Load
    1,500 lbs / 680 kg
  • Max Gross Weight (external)
    4,475 lbs / 2,030 kg
  • Max Gross Weight (internal)
    3,680 lbs / 1,669 kg
*MGW, Sea Level, ISA, no reserve
Powerplant
  • Takeoff
    505 shp / 377 kW
  • Max Continuous
    459 shp / 342 kW
Avionics
Fully integrated Garmin G1000H™ flight deck with twin 10.4” LCD screens reduces pilot workload.

Standard avionics features include:

  • Traffic Information System (TIS)
  • Moving Map display
  • Diagnostics/maintenance page
  • Airport diagrams
  • Flight Planning
  • Power Situation Indicator (PSI)
  • Engine Instruments and Crew Alerting System (EICAS)



Optional flight displays increase situational awareness:

  • Helicopter Terrain Awareness and Warning System (HTAWS)
  • Garmin’s Helicopter Synthetic Vision Technology™ (HSVT)
  • “Pathway in the Sky” display
  • Traffic Alert System (TAS)
